EGO Control

Postby Grillage » Sun Feb 14, 2016 5:21 pm

A short bit of a logfile:

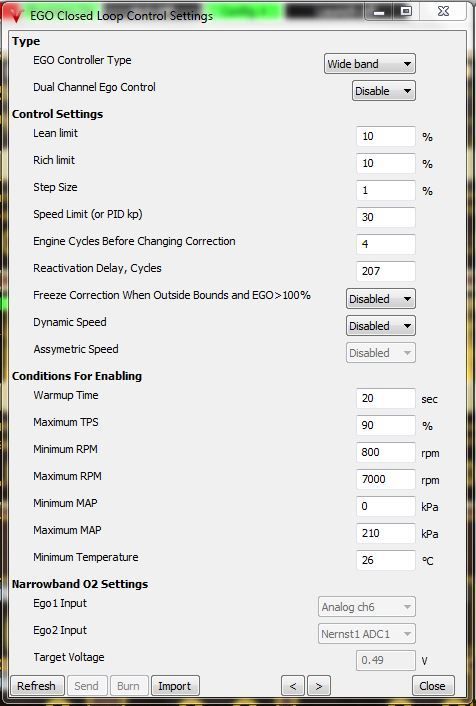

Here are my settings:

The car is a V8 coupe quattro
A few questions:

Do I want the Lambda to vary this much?

Also, when the TPS goes to zero I get 1.83 Lambda. Is this okay?

Thanks!
CURRENT
1995 90 Quattro
1994 Cabriolet - 5 speed

PAST
1993 Audi 90 CS Quattro - 1990 CQ - V8 - 1995.5 Audi S6 - 1993 Audi V8 - 2013 A5 Prestige - 2011 A4 Avant - 1986 Maserati Biturbo Spyder
User avatar
Grillage

Posts: 709
Joined: Feb 28, 2013
Location: Cincinnati, OH

Re: EGO Control

Postby UrSobsessed » Sun Feb 14, 2016 8:21 pm

Changing the "engine cycles before changing correction" value to something higher like 10 will slow down the system to keep it from chasing it's tail.

When you let off the throttle, the injectors are shut off, hence the full lean when you're delerating.

The system will always try to correct lambda within the parameters you set so when you move the throttle up and down, your lambda target changes and the system will try to get there. What you have there doesn't look bad.
UrSobsessed

Posts: 286
Joined: Feb 27, 2013

Re: EGO Control

Postby Grillage » Sun Feb 14, 2016 9:49 pm

Thanks, should I up the rich / lean limit to keep it closer to the lambda target or leave as is?
CURRENT
1995 90 Quattro
1994 Cabriolet - 5 speed

PAST
1993 Audi 90 CS Quattro - 1990 CQ - V8 - 1995.5 Audi S6 - 1993 Audi V8 - 2013 A5 Prestige - 2011 A4 Avant - 1986 Maserati Biturbo Spyder
User avatar
Grillage

Posts: 709
Joined: Feb 28, 2013
Location: Cincinnati, OH

Re: EGO Control

Postby UrSobsessed » Sun Feb 14, 2016 10:27 pm

It's up to you. I have mine set at 15% lean limit and 10% rich. Fuelling around idle can be tricky and vary a lot more than other running conditions, so that's why I have mine set to those amounts. However, in all other running conditions I don't need more than 3 or 4% correction either way. I tend to err on the rich side so the system spends more time leaning out lambda.
UrSobsessed

Posts: 286
Joined: Feb 27, 2013
